Sensu Stack – Beginner Notes

What is the Sensu Stack?  For a detailed explanation, read this webpage.  The Sensu stack has multiple components, which generally consist of the following.

  • Sensu Client – This is the agent that collects data.  Like Telegraf, the Sensu Client can be installed on both Linux and Windows.
  • Sensu Server – This is where the data from the client is processed and then pushed to the data layer.
  • Sensu API – Allows access to data from tools
  • RabbitMQ – This is the transport layer, responsibly for the communication between Client\Server.
  • Redis – Data persistence layer.
  • Uchiwa – Dashboard for viewing data

Below are some helpful notes for getting the Sensu stack components setup and running.

Helpful Links

Sensu Configuration Loading Sequence

  • Review the Sensu configuration property loading cadence here.

Redis Configuration File

  • /etc/redis.conf (Update this file to change host\port\etc….)
    • Default IP and Port = 127.0.0.1:6379

RabbitMQ-Server Configuration File and Management UI

  • /etc/rabbitmq/rabbitmq.config (Update this file to change host\port\etc….)
    • Default IP and Port = 127.0.0.1:5672
  • Managment console
  • rabbitmq

Sensu Server Configuration Files

  • /etc/sensu/config.json (Main configuration file – Files below are specific and get merged with main configuration file)
  • /etc/sensu/conf.d/api.json (Sensu server address, API bind address\port)
  • /etc/sensu/conf.d/client.json  (Contains client name, address, and subscriptions)
  • /etc/sensu/conf.d/rabbitmq.json (Contains the host\port for the rabbitmq server instance)
  • /etc/sensu/conf.d/transport.json (Contains the transport solution)
  • /etc/sensu/conf.d/redis.json (Contains the host\port for the redis instance)

Sensu Client Configuration Files

  • /etc/sensu/conf.d/client.json  (Contains client name, address, and subscriptions)
  • /etc/sensu/conf.d/rabbitmq.json (Contains the host\port for the rabbitmq server instance)

Uchiwa Configuration Files

  • /etc/sensu/uchiwa.json

General Log File Locations

  • Sensu Server = /var/log/sensu
  • Sensu Client = /var/log/sensu
  • RabbitMQ = /var/log/rabbitmq
  • Redis = /var/log/redis
  • Uchiwa = /var/log

Service Start\Stop Commands

  • service sensu-client start
  • service sensu-server start
  • service sensu-api start
  • service uchiwa start

Testing the Stack

  • If you are unable to access Uchiwa on port 3000, you may need to disable your firewall or at a minimum open port 3000
    • sudo firewall-cmd –zone=public –add-port=3000/tcp –permanent
  • You should be able to target the Uchiwa instance via http”\\<server_name>:3000
    • Example: http://<server_name>:3000/#/clients

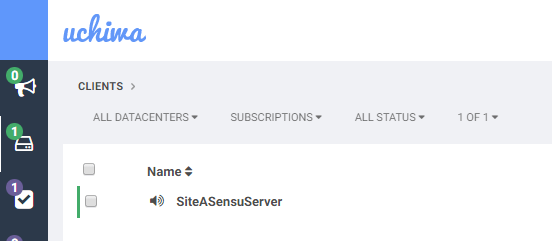

  • If everything is linked together properly you will get a nice gui like this!
